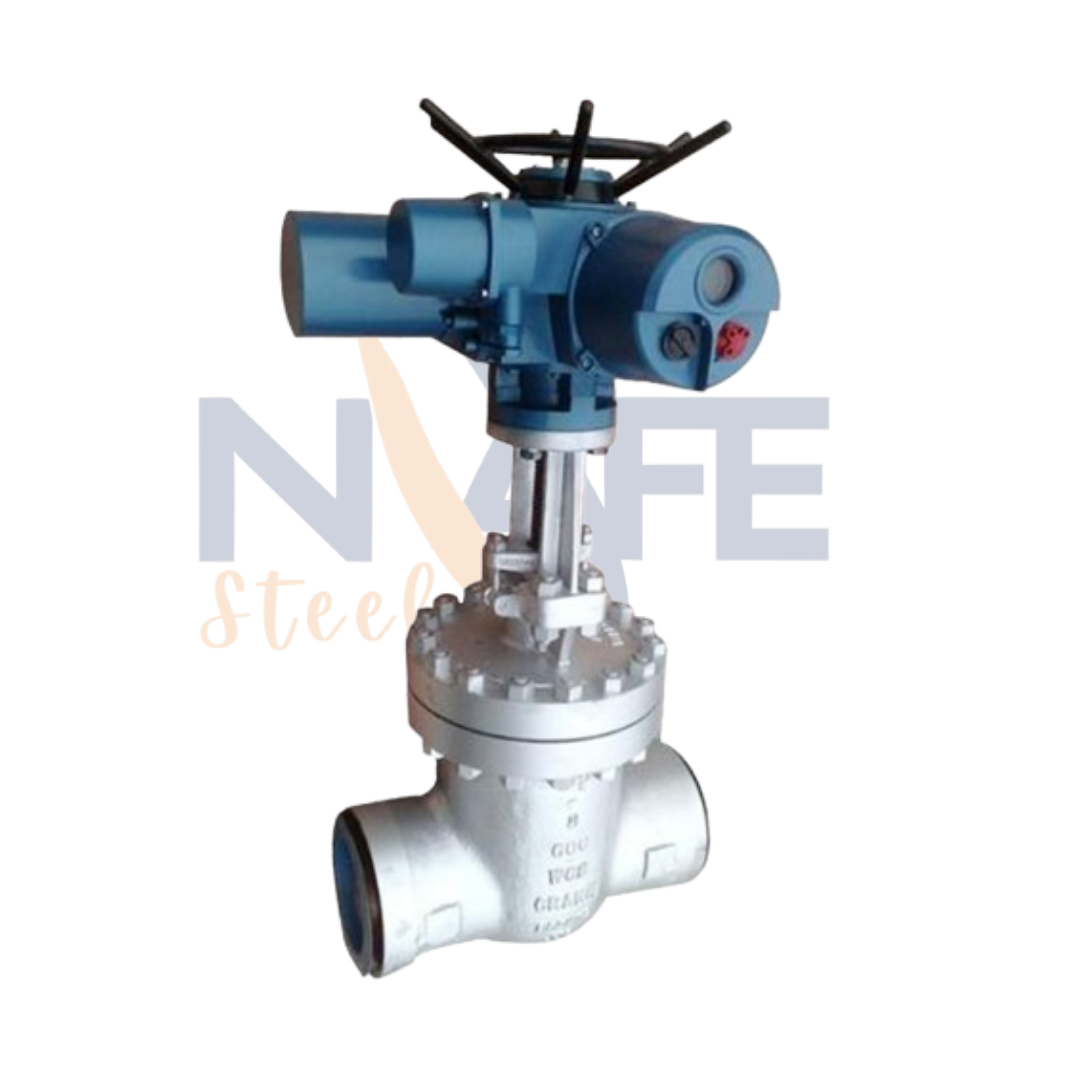

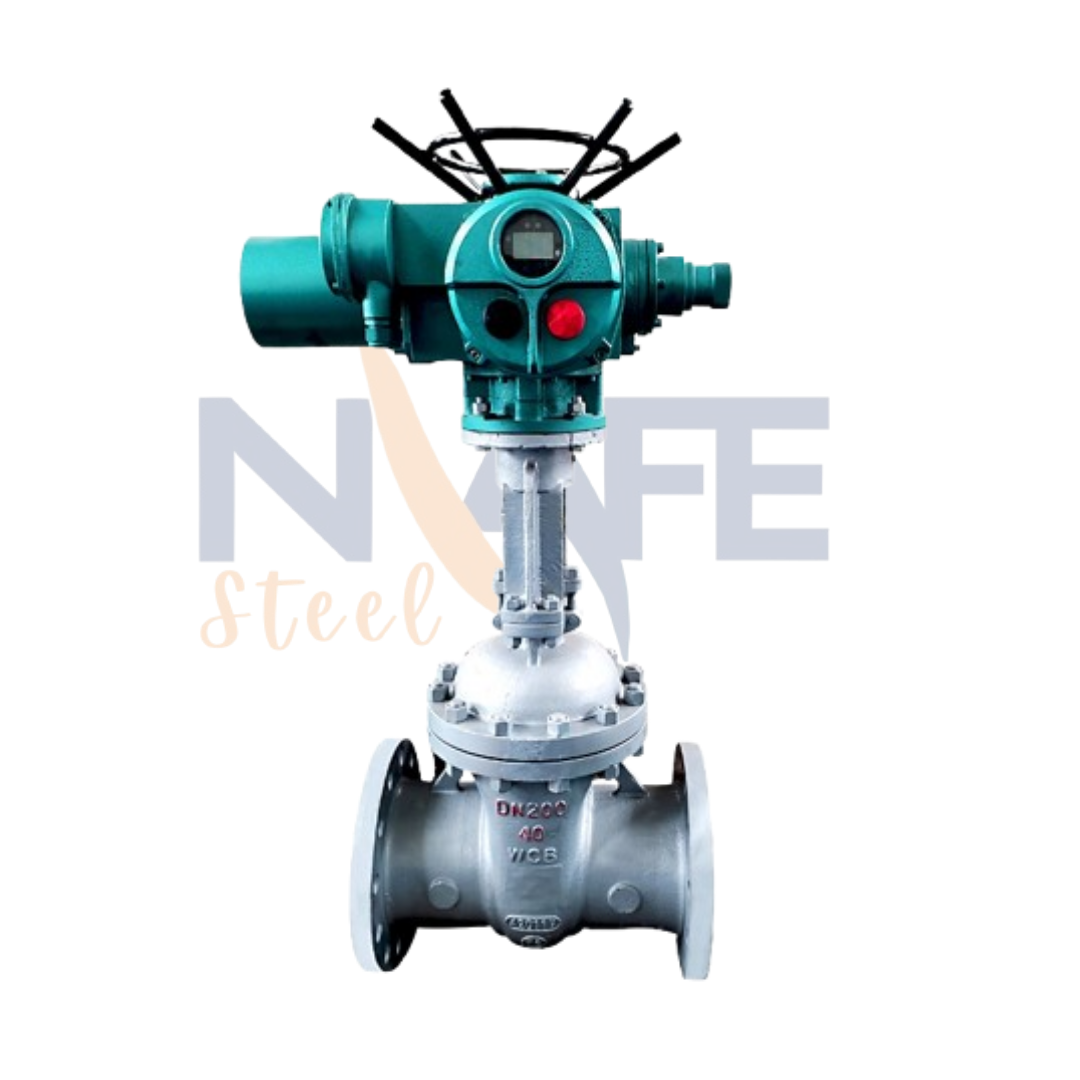

Electric Actuator Gate Valve ( Flange End & Buttweld)
An electric actuator operated bolted bonnet gate valve is an automated valve designed for precise flow control in industrial systems. The valve features a bolted bonnet, which ensures a strong, leak-proof seal, making it ideal for high-pressure and high-temperature environments. The electric actuator provides remote control of the valve, offering efficient operation without manual intervention, which is particularly useful in applications requiring frequent or automated valve adjustments. Available in flange end and buttweld connection types, the flange end version allows for easy installation and maintenance, while the buttweld version ensures a permanent, secure, and leak-tight connection. These valves are commonly used in industries such as oil and gas, power, and water treatment for their reliability, automation capabilities, and durability in demanding conditions.
Details
Specifications
| Design std | API600 / BS1414 |
|---|---|
| Size | 2″ TO 24″ |
| Class | 150# TO 2500#” |
| Body & Bonnet Material | WCB, WCC, WC6, WC9, C 5, C 12, LCB, LCC, CF8, CF8M |
| SEAT | A105+13%CR, A105+STEELITED 6# |
| TRIM | API NO. 1 TO 16 |
| Face to Face | ANSI B16.10 |
| End Connection | ANSI B16.5 |
STANDARD MATERIAL COMBINATION
| P. NO. | PART DESCRIPTION | Carbon Steel to ASTM | Alloy Steel to ASTM | Stainless Steel to ASTM | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type WCB | Type LCB | Type WC1 | Type WC6 | Type WC9 | Type C5 | Type C12 | Type CF8 | Type CF8M | Type CF3 | Type CF3M | ||
| 1 | BODY | A216 WCB | A352 LCB | A217 WC1 | A217 WC6 | A217 WC9 | A217 C5 | A217 C12 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| 2 | SEAT RING | As Per Trim Material Combination | ||||||||||
| 3 | WEDGE | As Per Trim Material Combination | ||||||||||
| 4 | STEM | As Per Trim Material Combination | ||||||||||
| 5 | GASKET | Stainless Steel + Graphoil | ||||||||||
| 6 | BONNET | A216 WCB | A352 LCB | A217 WC1 | A217 WC6 | A217 WC9 | A217 C5 | A217 C12 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| 7 | BACK SEAT BUSH | As Per Trim Material Combination | ||||||||||
| 8 | PACKING | To Suit Service Conditions | ||||||||||
| 9 | LANTERN RING | As Per Trim Material Combination | ||||||||||
| 10 | GLAND | A182 F6a | A182 F304 | A182 F6a | A182 F6a | A182 F6a | A182 F6a | A182 F6a | F-304 | F-316 | F-304L | F-316L |
| 11 | GLAND FLANGE | A216 WCB | A352 LCB | A217 WC1 | A217 WC6 | A217 WC9 | A217 C5 | A217 C12 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| 12 | NUTS | A194 2H | A194 Gr.4 | A194 Gr.4 | A194 Gr.4 | A194 Gr.4 | A194 Gr.4 | A194 Gr.4 | A194 Gr.8 | A194 Gr.8 | A194 Gr.8 | A194 Gr.8 |
| 13 | YOKE SLEEVE | AI, Bronze BS1982 CC331G or Ni – resist to A439 D2 | ||||||||||
| 14 | OIL SEAL | EPDM/BUNA ‘N’ RUBBER | ||||||||||
| 15 | THRUST BEARING | STEEL | ||||||||||
| 16 | LUBRICATOR | STEEL | ||||||||||
| 17 | YOKE SLEEVE RETAINING NUT | STEEL IS:2062 | ||||||||||
| 18 | LOCKING SCREW | STEEL IS:2062 | ||||||||||
| 19 | HAND WHEEL | D1 A536 80-55-D6 OR MI 1S 2108 BM 290/ASTM A338 | ||||||||||
| 20 | HAND WHEEL RETAINING NUT | STEEL IS:2062 | ||||||||||
| 21 | STUDS | A193 B7 | A320 L7 | A193 B16 | A193 B16 | A193 B16 | A193 B16 | A193 B16 | A193 B8 | A193 B8 | A193 B8 | A193 B8 |
