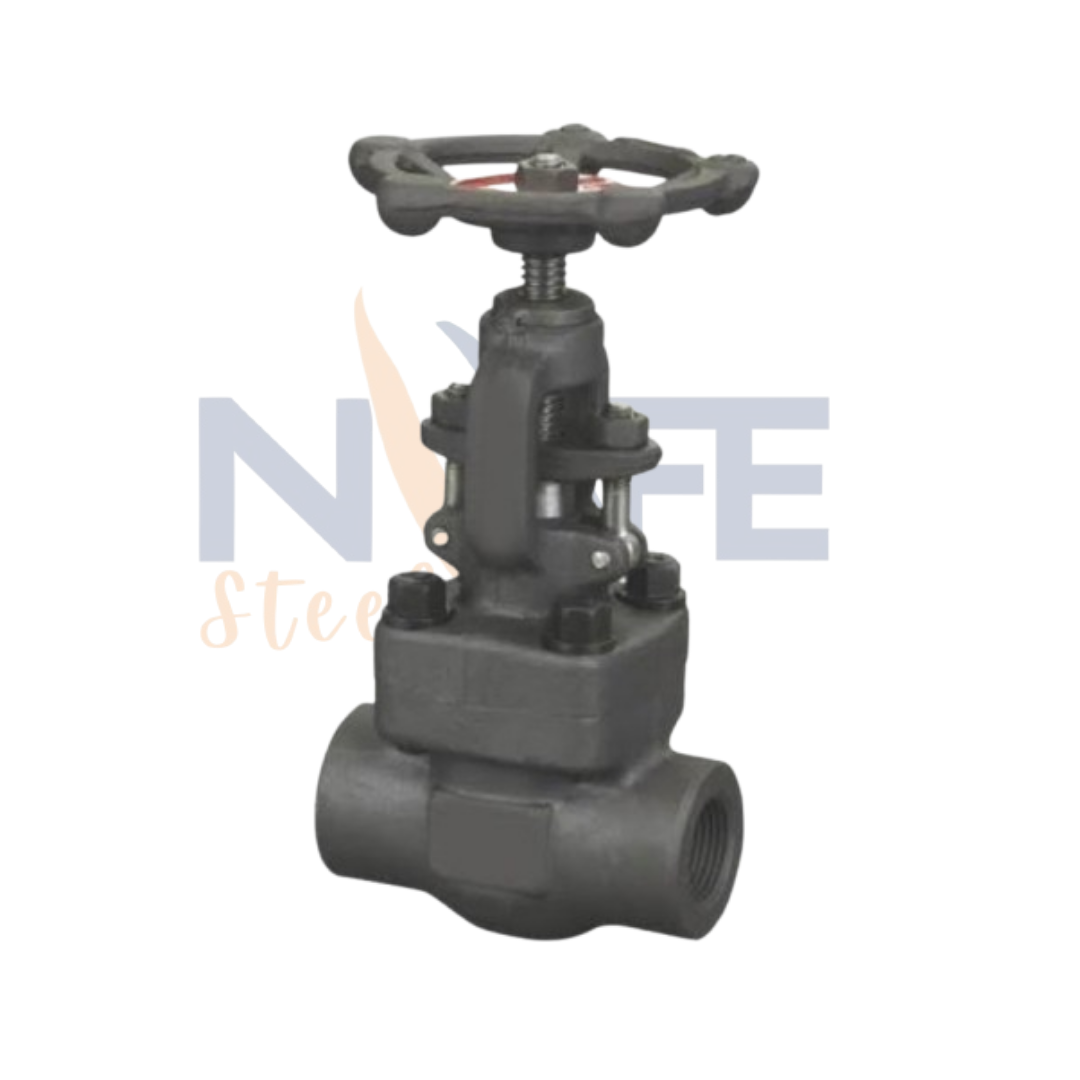

Bolted Bonnet Globe Valve (Forged Steel)
A bolted bonnet globe valve made of forged steel is a robust and reliable valve designed for precise flow regulation in high-pressure and high-temperature applications. Its bolted bonnet construction ensures a secure seal between the body and the bonnet, providing leak-proof performance even in demanding conditions. The forged steel body offers exceptional strength, durability, and resistance to wear, making it suitable for critical industrial applications. The globe valve design enables accurate throttling and flow control by using a movable disc and stationary seat. Widely used in industries such as oil and gas, petrochemical, and power generation, this valve is valued for its efficiency
Details
Specifications
| Design std | API602 / ASME B16.34 |
|---|---|
| Size | ½” TO 2″ |
| Class | 800# TO 4500# |
| Body & Bonnet Material | A105, LF2, F11, F22, F304, F316, ETC. |
| Face to Face | AS PER MFG STD |
| End Connection | S/W ANSI B16.11. BUTTWELD ANSI B16.25, SCREW ENDS ANSI B1.20.1 |
| Operated | HAND WHEEL, ELECTRIC ACTUATOR |
STANDARD MATERIAL COMBINATION
| P. NO. | PART DESCRIPTION | Carbon Steel to ASTM | Alloy Steel to ASTM | Stainless Steel to ASTM | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Type 105 | Type LF2 | Type F5 | Type F11 | Type F22 | Type F9 | Type F304 | Type F316 | Type F304L | Type F316L | ||
| 1 | BODY | A105 | A350 LF2 |
A182 F5 |
A182 F11 |
A182 F22 |
A182 F9 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
| 2 | SEAT RING | A276 SS 410 |
A276 SS 304 |
A276 SS 410 |
A276 SS 410 |
A276 SS 410 |
A276 SS 410 |
SS 304 | SS 316 | SS 304L | SS 316L |
| 3 | DISC | CA15 / SS 410 |
A276 / SS 304 |
CA15 / SS 410 |
CA15 / SS 410 |
CA15 / SS 410 |
CA15 / SS 410 |
SS 304 | SS 316 | SS 304L | SS 316L |
| 4 | GASKET | SPIRAL WOUND STAINLESS STEEL GRAPHOIL FILLER | |||||||||
| 5 | BONNET | A105 | A350 LF2 |
A182 F5 |
A182 F11 |
A182 F22 |
A182 F9 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
| 6 | STUDS | A193 B7 |
A320 L7 |
A193 B7 |
A193 B7 |
A193 B16 |
A193 B16 |
A193 B8 |
A193 B8 |
A193 B8 |
A193 B8 |
| 7 | PACKING | FLEXIBLE GRAPHITE | |||||||||
| 8 | GLAND | A182 F6a |
SS 304 | A182 F6a |
A182 F6a |
A182 F6a |
A182 F6a |
SS 304 | SS 316 | SS 304L | SS 316L |
| 9 | GLAND FLANGE | A105 | A350 LF2 |
A182 F5 |
A182 F11 |
A182 F22 |
A182 F9 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
| 10 | NUTS | A194 2H |
A194 Gr.4 |
A194 2H |
A194 Gr.4 |
A194 Gr.4 |
A194 Gr.4 |
A194 Gr.8 |
A194 Gr.8 |
A194 Gr.8 |
A194 Gr.8 |
| 11 | STEM | A276 SS 410 |
A276 SS 304 |
A276 SS 410 |
A276 SS 410 |
A276 SS 410 |
A276 SS 410 |
SS 304 | SS 316 | SS 304L | SS 316L |
| 12 | YOKE SLEEVE | ASTM A582 TYPE 416 | |||||||||
| 13 | HAND WHEEL | DI. A536 Gr. 80-55-06 | |||||||||
| 14 | HAND WHEEL RETAINING NUT | STEEL | |||||||||
| NOTES : The above data is subject to change without any notice due to our continuing product improvement Program. | |||||||||||
