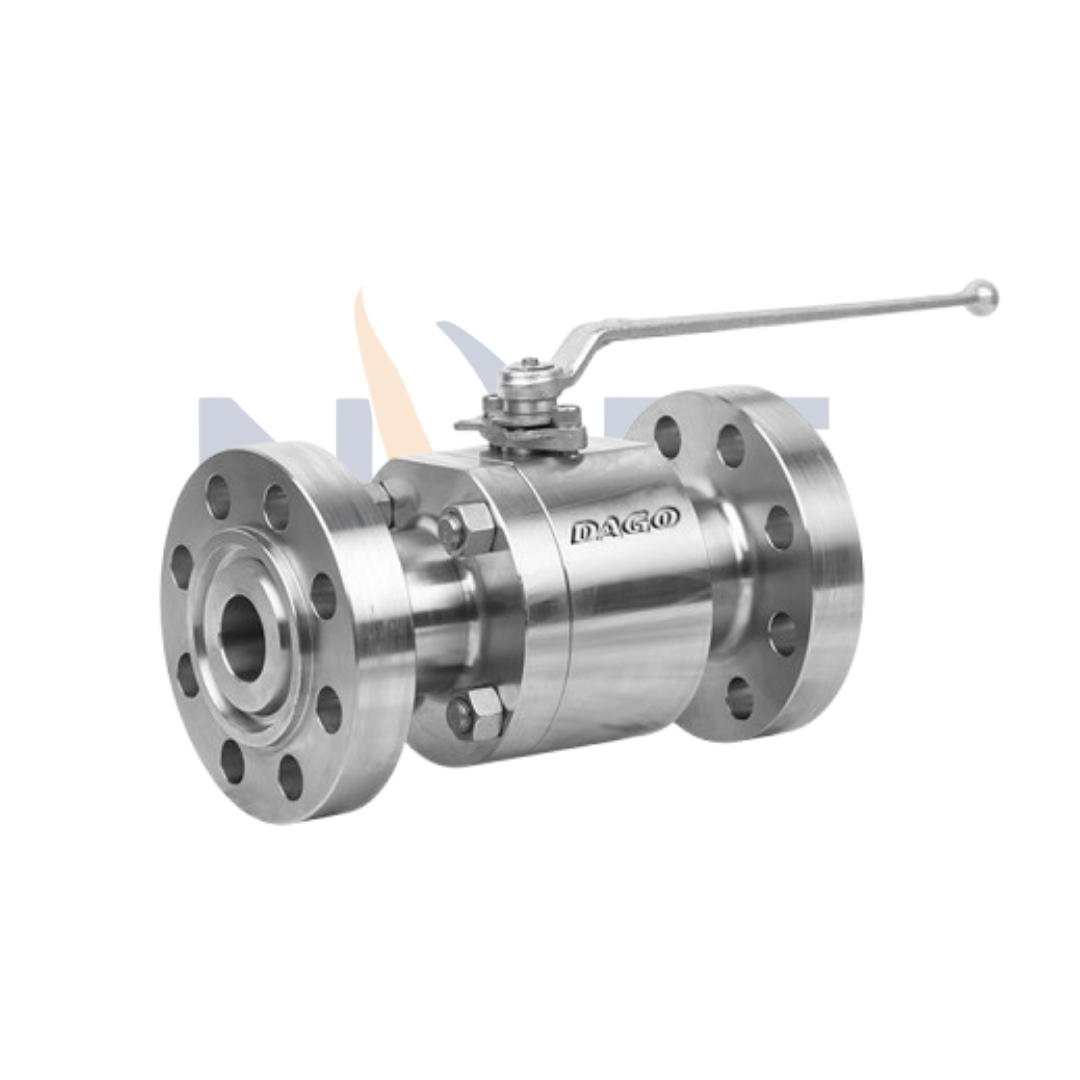

Floating Forged Body Ball Valve Reduce or Full Bore (Lever Operated)

A floating forged body ball valve is a durable and reliable valve designed for fluid flow control in industrial applications. The valve features a forged body construction, offering superior strength, resistance to high pressure, and extended service life compared to cast body valves. Its floating ball design ensures a tight seal by pressing against the seat under pressure. Available in both reduced bore, for cost and weight efficiency, and full bore, for unrestricted flow, this valve provides versatility for various operational needs. Lever operation allows for simple and quick manual control. Widely used in industries such as oil and gas, petrochemicals, and water treatment, this valve is valued for its robust construction, efficiency, and ease of operation.

Details

Specifications

Design std

API 6D

Size

½” TO 6″

CLASS

150# TO 2500#

Body Material

A105, LF2, F304, F316, F304L, F316L

END PIECE

A105, LF2, F304, F316, F304L, F316L

BALL

A105+ENP13%CR, CF8, CF8M, ETC.

SEAT MATERIALS

PTFE, PRTFE, NYLON, DEVLON, PEEK, METAL TO METAL

FACE TO FACE

ANSI B16.10

END CONNECTION

ANSI B16.5 RF ANSI B16.25
